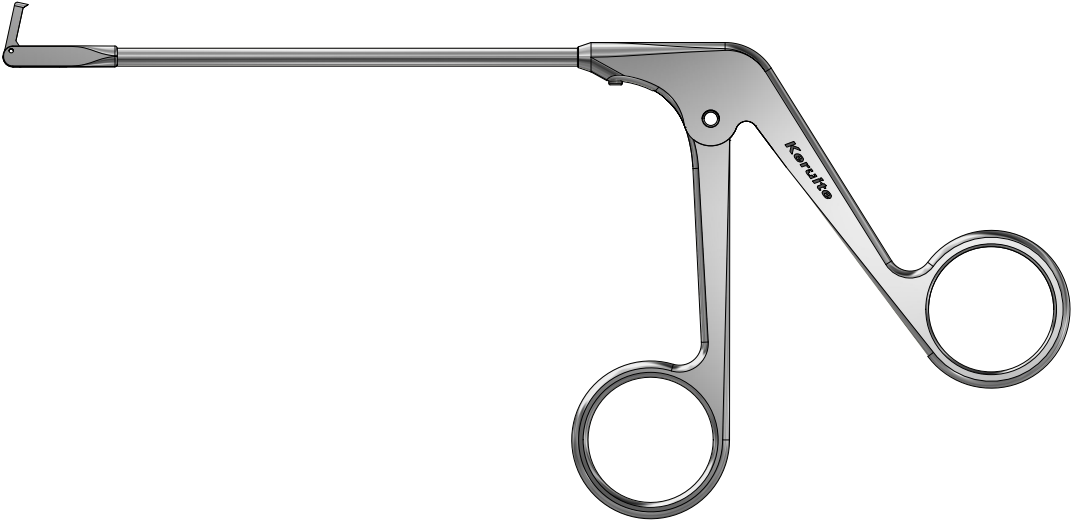

上頜竇咬骨鉗 maxillary sinus bone rongeur

友情提示： 為達到產品樣式最佳展現效果請切換電腦瀏覽器或手機橫平瀏覽！

常規

	0°/反向咬切 0°/Reverse bite cutting	B-019-XG	-D1 -Z1 -X1

	15°/反向咬切 15°/Reverse bite cutting	B-020-XG	-D1 -Z1 -X1

● 80°張開角度占用前方空間更小
● The opening angle of 80 degrees occupies less space in front.
● 倒鉤結構防止被切除物滑脫
● Barbed structure to prevent slippage of excised object
● 實現切除物體自然脫落的特殊技術
● Special Techniques for Natural Shedding of Excised Objects
● 高強度材料實現桿部更纖細，視野更開闊
● High-strength material to achieve finer rod and wider field of vision
● PVD鍍膜使耐腐蝕性、耐磨損性得到了極大改善
● The corrosion resistance and wear resistance of PVD coating have been greatly improved.

產品參數 Product parameters

上頜竇咬骨鉗【反向切鉗】maxillary sinus bone rongeur
型號 Model			規格 Specifications		頭部 head			總長 Total length
					L	W	H
KRT-B-019	-XG	-D1	0°	常規	7.5mm	4.1mm	4.1mm	140mm
		-Z1		常規		3.8mm	3.8mm
		-X1		常規		3.5mm	3.5mm
KRT-B-020	-XG	-D1	下斜15°	常規	7.5mm	4.1mm	4.1mm
		-Z1		常規		3.8mm	3.8mm
		-X1		常規		3.5mm	3.5mm

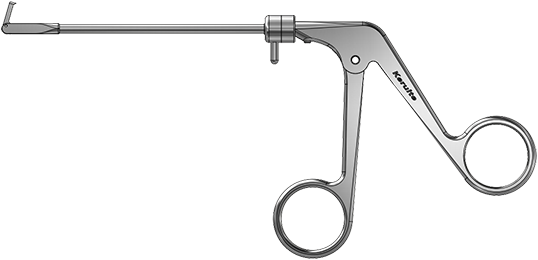

旋轉 rotation

	0°/反向咬切 0°/Reverse bite cutting	B-019-XG	-D2 -Z2 -X2

	15°/反向咬切 15°/Reverse bite cutting	B-020-XG	-D2 -Z2 -X2

● 80°張開角度占用前方空間更小
● The opening angle of 80 degrees occupies less space in front.
● 倒鉤結構防止被切除物滑脫
● Barbed structure to prevent slippage of excised object
● 實現切除物體自然脫落的特殊技術
● Special Techniques for Natural Shedding of Excised Objects
● 高強度材料實現桿部更纖細，視野更開闊
● High-strength material to achieve finer rod and wider field of vision
● 360°旋轉滿足更多操作角度
● 360 Degree Rotation Satisfies More Operative Angles
● PVD鍍膜使耐腐蝕性、耐磨損性得到了極大改善
● The corrosion resistance and wear resistance of PVD coating have been greatly improved.

產品參數 Product parameters

上頜竇咬骨鉗【反向切鉗】maxillary sinus bone rongeur

型號
Model

規格
Specifications

頭部 head

總長
Total length

KRT-B-019

-XG

-D2

旋轉

0°

7.5mm

4.1mm

140mm

-Z2

3.8mm

-X2

3.5mm

KRT-B-020

-XG

-D2

15°

7.5mm

4.1mm

-Z2

3.8mm

-X2

3.5mm
